Headers

Headers

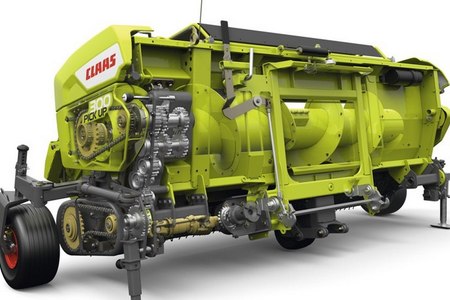

PICK UP 380 / 300

PICK UP 380 / 300
  • Small-diameter rake with five rows of tines for perfect crop intake.
  • Large auger diameter designed to transfer the crop quickly, whatever the crop density.
  • Rugged drive line with easy-to-operate, two-speed gearbox.
  • Designed with extremely high acreages in mind, the wear parts are easy to replace.
  • Excellent ground-contour following is achieved with a swiveling frame and castor guide wheels, which are set without tools.
  • The headers can be easily attached to and removed from the JAGUAR by a quick-connect coupler and central locking lever on the left-hand side.
  • Replaceable wear plates (available through CLAAS Parts) for auger and trough.

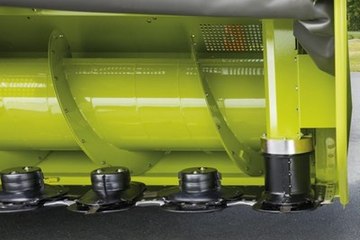

Direct Disc 600/500

Direct Disc 600/500

Simple, convenient, proven.

  • Simple attachment and locking; friction-type connection of the drive train via quick-connect coupler
  • Delayed switching on spring elements and mowing unit allows the use of the DIRECT DISC even at full load
  • Three different conveyor speeds for uniform crop flow and optimal chopping quality
  • Proven DISCO cutter bars with MAX CUT for high cutting performance and clean work quality
  • Reduced downtime, thanks to quick blade change
  • Perfect adaptation to harvesting conditions with hydraulically height-adjustable paddle roller
  • Easy access to conveying elements through large service opening
  • Excellent ground tracking by the mechanical side equalization and guiding on skids at Ground pressure control
  • Lateral knife separation optional

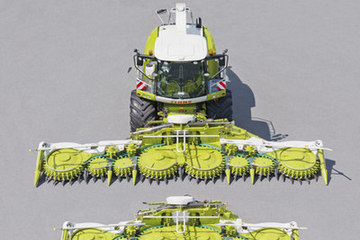

ORBIS 900/750/635/600

Direct Disc 600/500

The row-independent ORBIS corn header range from CLAAS combines entirely new ideas with regard to structure and drive, and the years of global experience amassed by CLAAS through the RU range. The high standard of the functional reliability and benefits of this all-new design are yours to enjoy, every minute of the day.

Smooth crop flow.

The crop is laid flat and the stems are always fed to the JAGUAR lengthways. This ensures impressively precise chopping quality.

Compact dimensions.

The ORBIS is characterised by excellent, unrestricted visibility and low axle loads. The extremely short structure facilitates simple manoeuvring, even in tight turns.

Free-running drive.

The extremely low power requirement significantly reduces diesel consumption and enhances the overall performance of the forage harvester. The low starting torque enables you to engage and reverse under full load without any problems. As the outstanding chopping quality is maintained even during forage trailer changeovers, overall performance is increased.

Perfect ground-contour tracking.

The header suspension ensures that ORBIS maintains an ideal lateral balance and adjusts itself to the field contours. This leads to an appreciable reduction in wear and increases reliability.

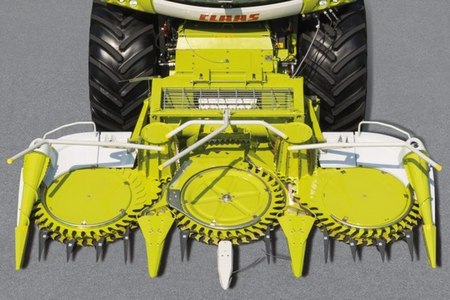

Row-independent harvesting with RU 450 – 15' (4.5m) working width

Row-independent harvesting with RU 450 – 15' (4.5m) working width

The crop flow concept of the RU 450 is based on three large cutting and transport discs rotating counterdirectionally to each other. The cut surfaces of the plants rest on the blade and create a self-sharpening effect as they are fed in.

An aggressive crop flow is ensured by the intake auger whose speed can be optimized in line with the set chopping length. The simple construction is rugged and reliable.

  • Low power requirement
  • Reliable crop transport under all conditions
  • Can be switched on and reversed under full load
  • Adapts easily with quick coupler
